〇 Displacement of 1450μｍ at 150V
〇 Output force above 70N at 150V
〇 Fast rise time of 1.3ms

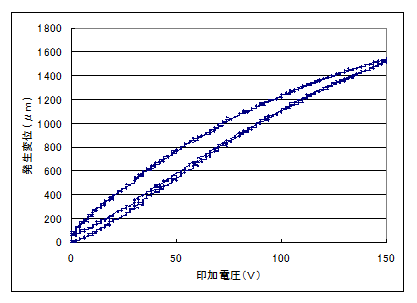

●Voltage Vs Displacement

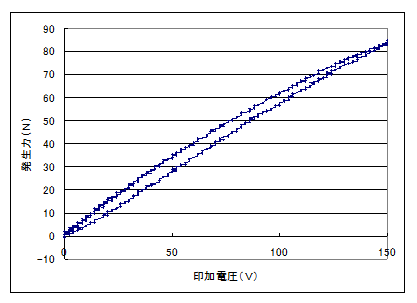

●Voltage Vs Blocked force



●Rise time waveform



●Specification of MTAU10S850F35

	Displacement  (μm)		Blocked force [N]	Stiffness [kN/m]	Resonance frequency [Hz]	Capacitance[μF]
	@100V	@150V	@100V
MTAU10S850F35	950	1450	Above 70	49.85	Above 400	20.7
