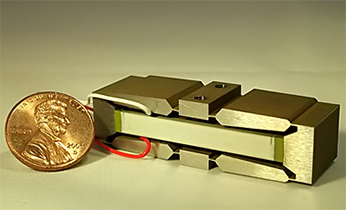

MTDD16S900F110　[Datasheet Download]

Specifications

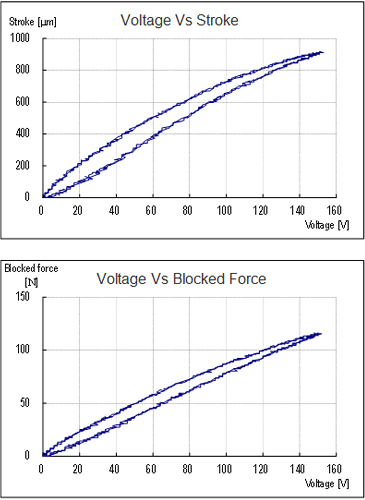

・Open-loop stroke： 900 µm @ 150V (fixed-free)
*Tolerance value: 720～1080 µm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.12 N/µm
・Resonance frequency(blocked-free): 240 Hz
*Tolerance value: 192～288 Hz
・Blocked force: 110 N (*Tolerance value: 88～132 N)
・Capacitance: 11.3 µF
・Dimension: 52x16x14 mm
・Mechanical interface: 2-M3 Tapped hole at both sides
・Environment ： 0 to 85℃ with humidity less than 40%
・Mass: 60 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

Geometry
